Topman - Footwear

Design development, prototyping, final design

Whilst working at SFD I oversaw the design development, prototyping and phased roll out of this design for Lloyds footwear concessions within Topman stores.

Footwear dept

Flexible solutions

The design is based around modular shelf brackets mounted directly to ply-lined walls. Module lengths can be customized to fill all available space within each new store.

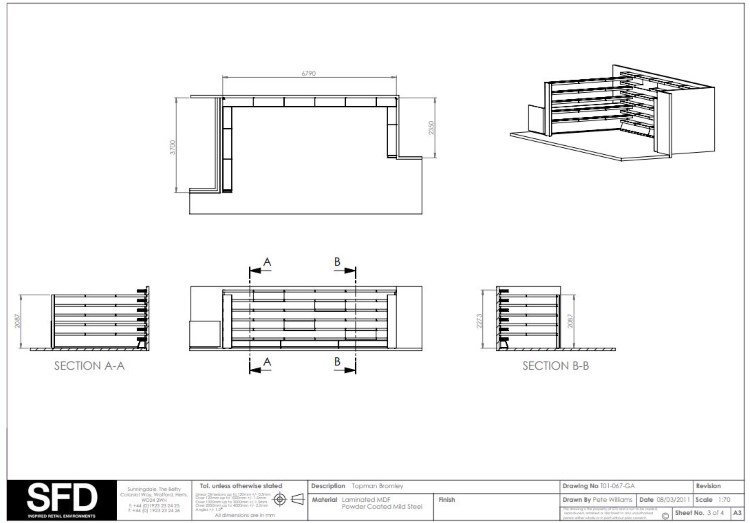

Layout elevations

Off wall shelves

In some stores a Free-standing end frame was used to bring shelves out at 90° to the wall. On the outside these shelves looked identical to the wall fixed shelves.

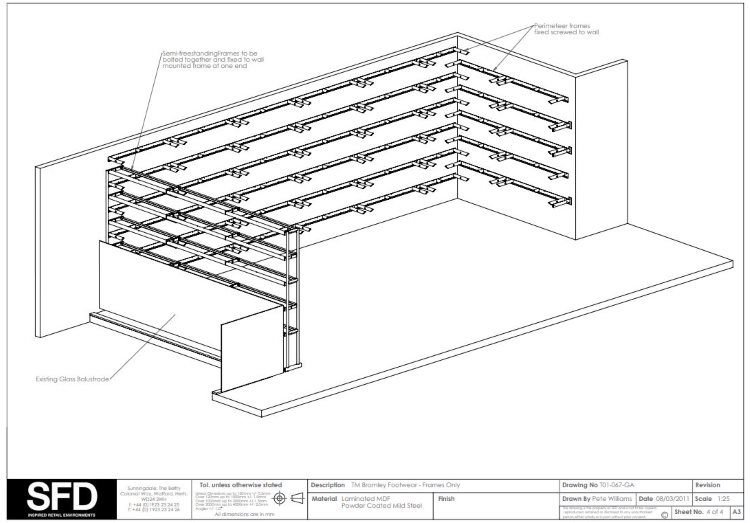

First-fix isometric

Integrated lighting

The system was designed to make choosing to include integrated lighting for some stores a simple addition.

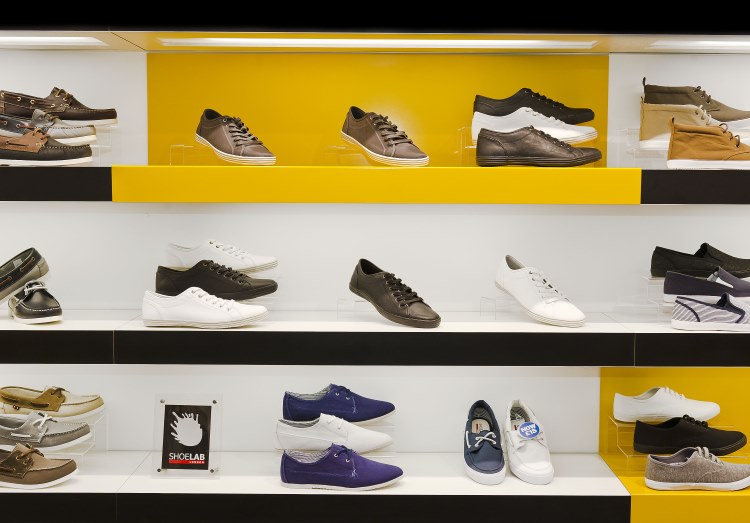

Shoe shelves
